Modular heat pump,
Inverter MCU-YHI series

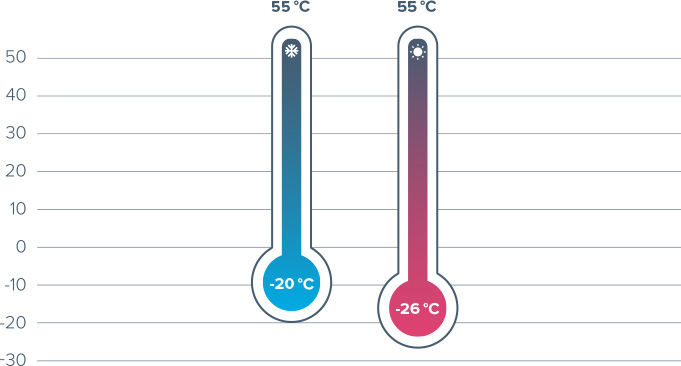

The high-tech series of MCU YHI heat pumps from Mycond is made on the basis of advanced technologies. The heart of the unit is an advanced inverter compressor with EVI technology. Along with fans made on the basis of inverter technologies, microprocessor type of control and other components from world-famous brands, the heat pump guarantees uninterrupted operation all year round, both for cold to -20...55°C and heat to -26...55 °C degrees. It combines high efficiency with accurate and year-round maintenance of climate performance for any system

MORE DETAIL
Heating capacity
34-150 kW
Cooling capacity
33,5- 130 kW

Operation range

Thanks to many years of experience in the development and design of refrigeration equipment, the company has successfully implemented the technology enhaced vapour injection (EVI) and inverter technology and made a breakthrough in the operation of modular heat pumps, the operating range is increased.

Full-inverter power saving

Energy efficiency class 1 according to the dual classification scheme based on the seasonal energy efficiency ratio (SEER) during cooling and heating operation. Power saving up to 26% in the entire SEER range.

Various applications

This solution is suitable for conventional indoor use, as well as special process and sanitary conditions, cooling only operation, low temperatures and extreme heat, etc. The unit supports a full range of alternative applications.

Intelligent combination

Up to 16 fixed-speed modules (YH\YHE) and variable-speed inverter modules can be freely combined. This allows meeting various project demands, such as energy saving.

All-round air intake

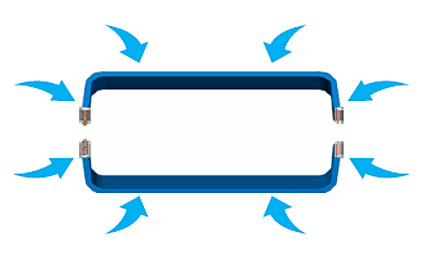

The heat exchanger is made of two U-shaped parts, with 45% more area on the air side and uniform all-round air return.

Proprietary drive control program

The unit is driven by a BLDC motor, while the control program with 8,000 counts per second and double filtering prevents power outages at any frequency level.

Inverter driven operation and precise output adjustment

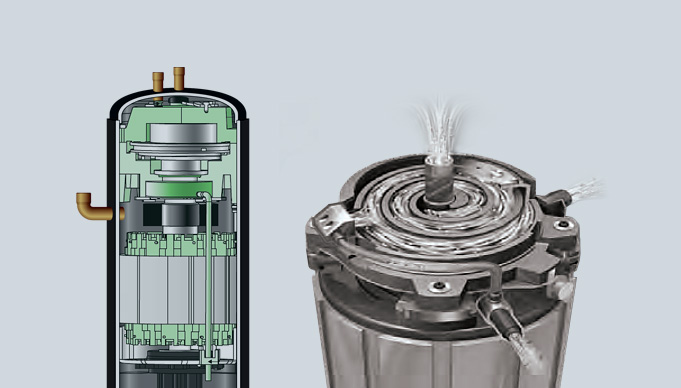

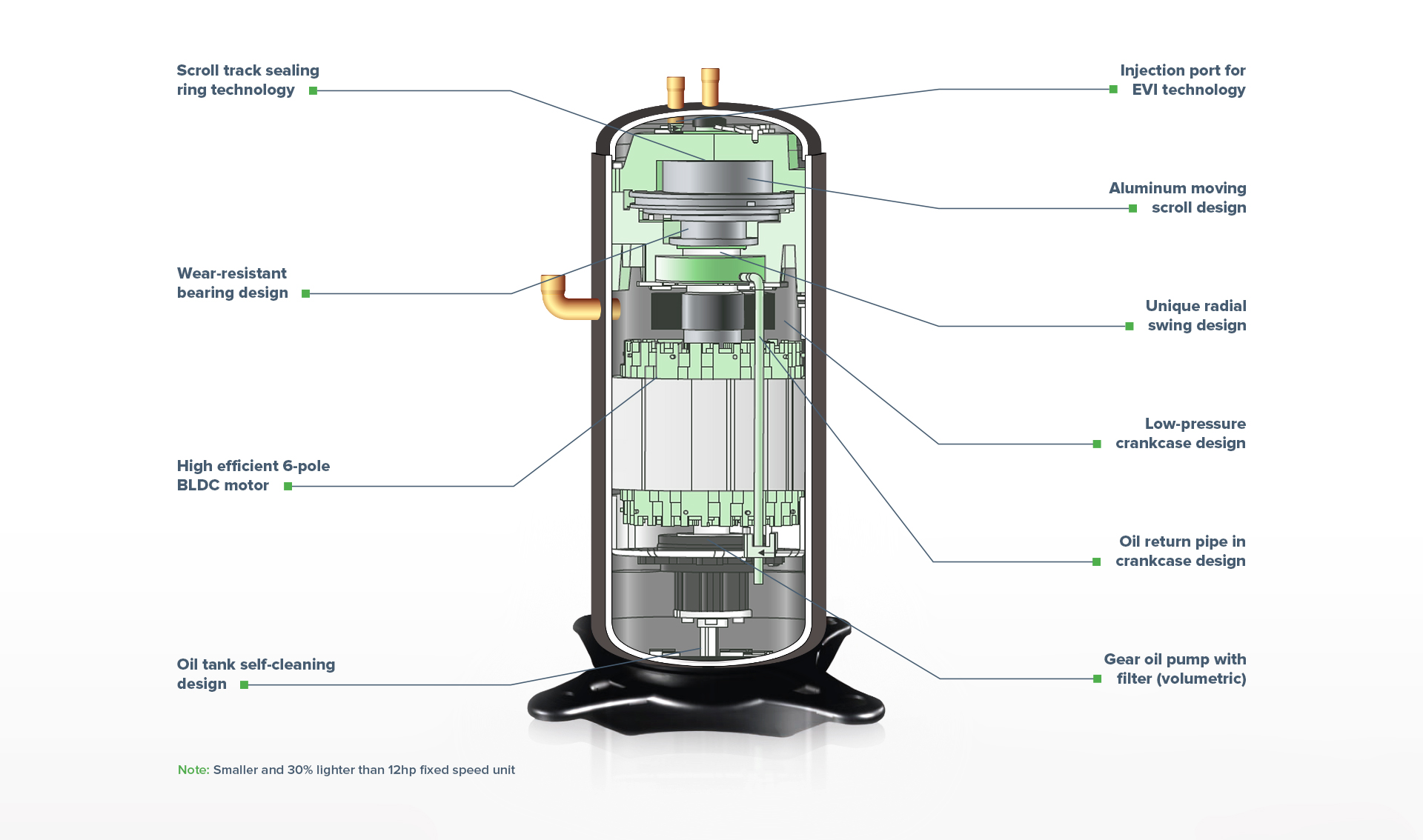

The powerful inverter compressor supports stepless adjustment of capacity within 15% to 100%. It also performs well under partial load, avoiding frequent starts and stops. The use of EVI technology enables operation in extreme cold or heat.

Technological design

  • The heat pump components are completely concealed to prevent them from damaging
  • Improved heat exchange efficiency thanks to the increased air intake area Sheet metal casing painted in ivory colour

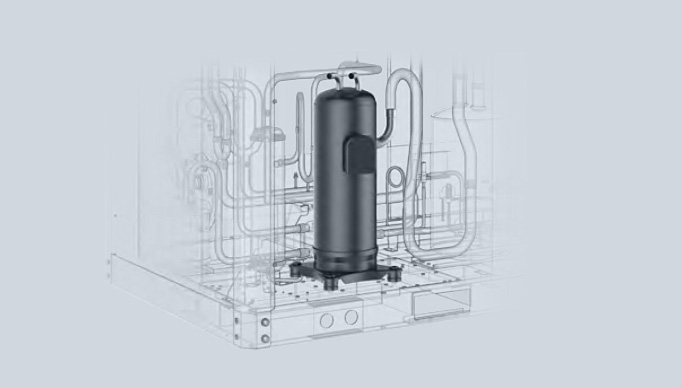

  • Distinctive inverter design with the technology of enhanced vapour injection (EVI)
  • High-efficiency shell-and-tube heat exchanger

Communication and control features

  • Modular design for easy combination of the units
  • Easy to use touch control panel (accessory)
  • Support of remote control via MODBUS

Modular Design

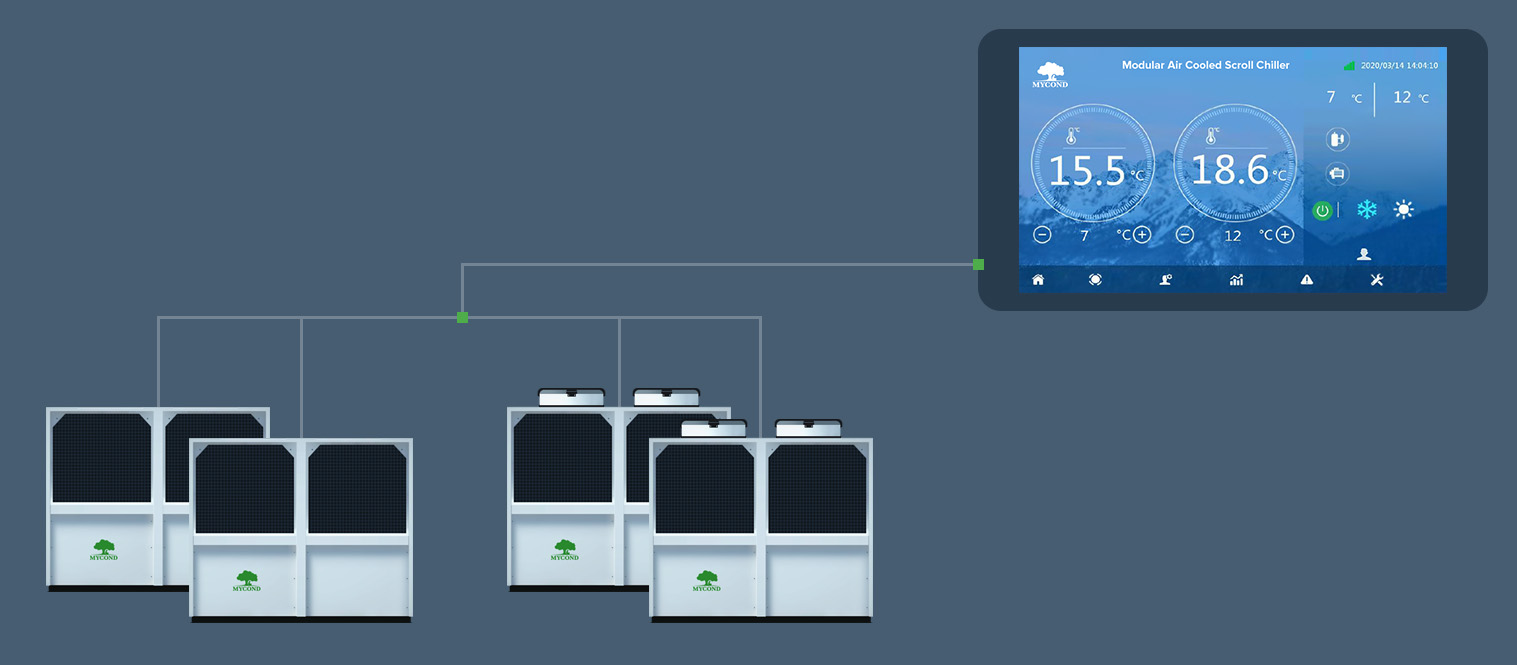

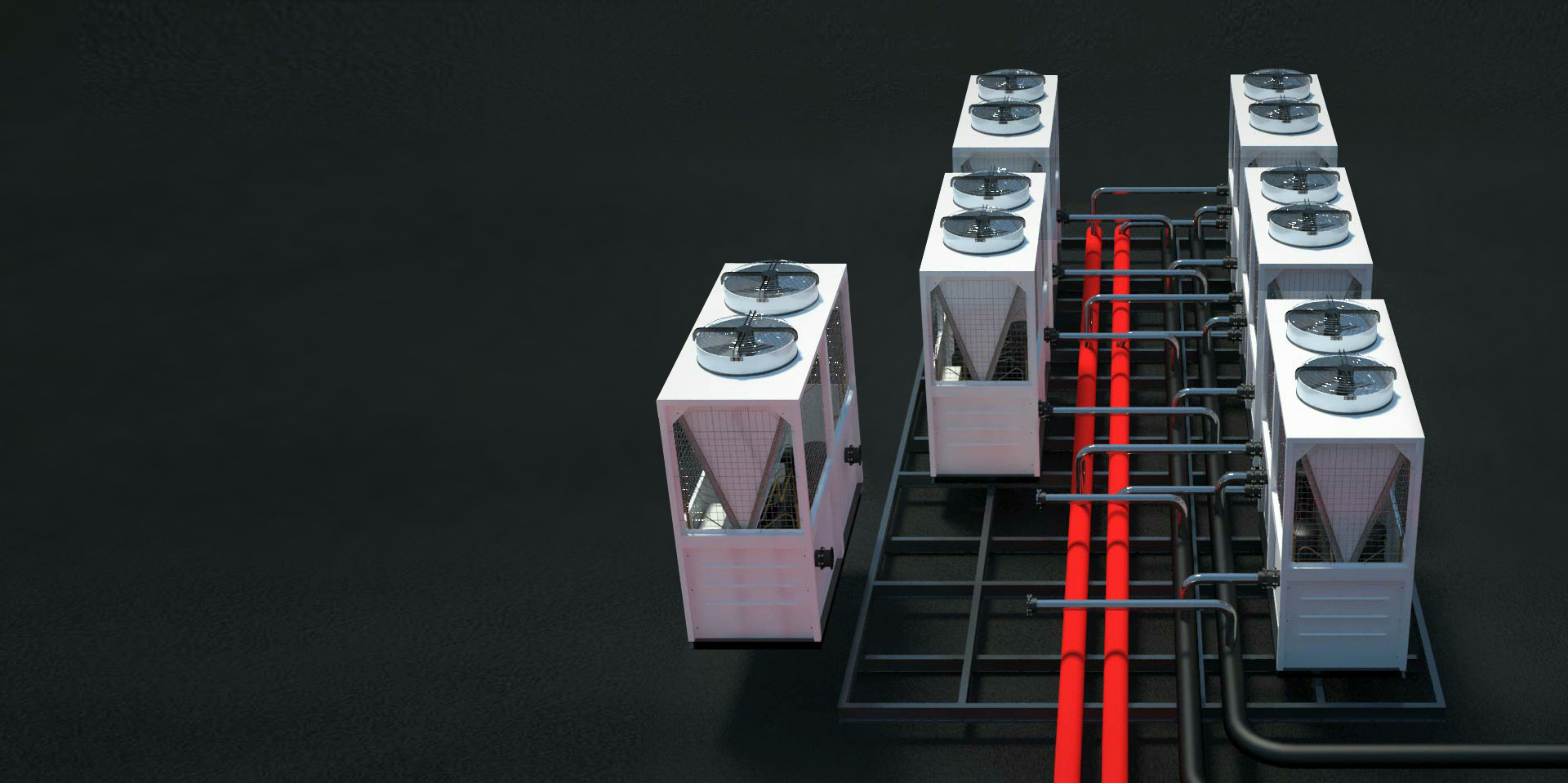

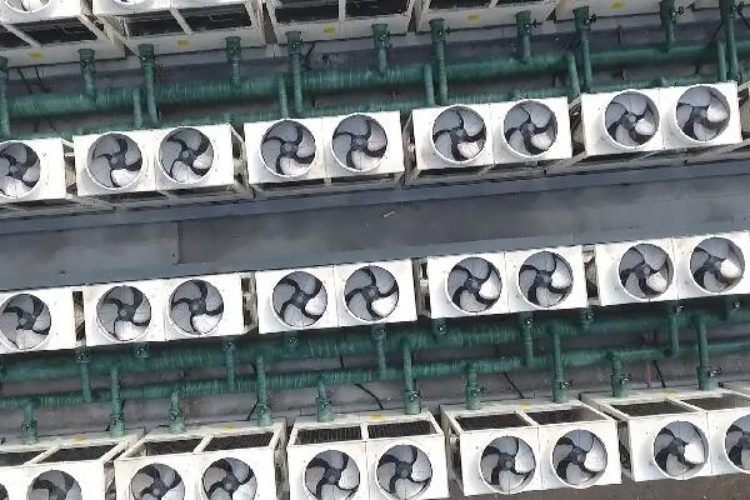

The unique feature of the series is its modular design with the ability to combine up to 16 modules (165YH, plus up to 8 modules) in a single system.

This feature allows extending the capacity over 1 MW with the number of capacity stages being equal to the number of compressors, so that you can have up to 32 capacity stages with 16 chiller modules (in dual-compressor models). The entire system is controlled via a single remote controler connected to the master module, while the rest are slave
modules. This results in a N-module monoblock heat pump.

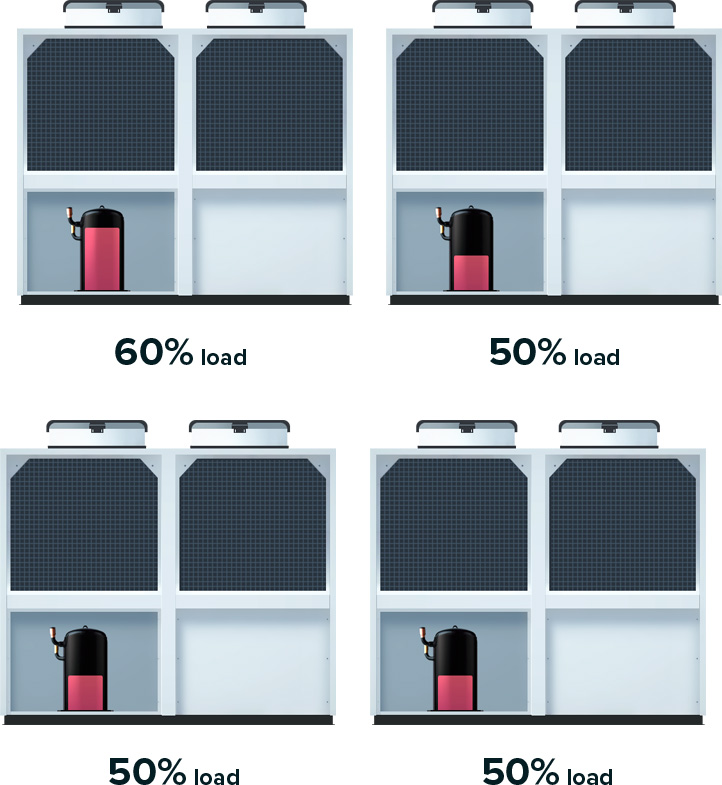

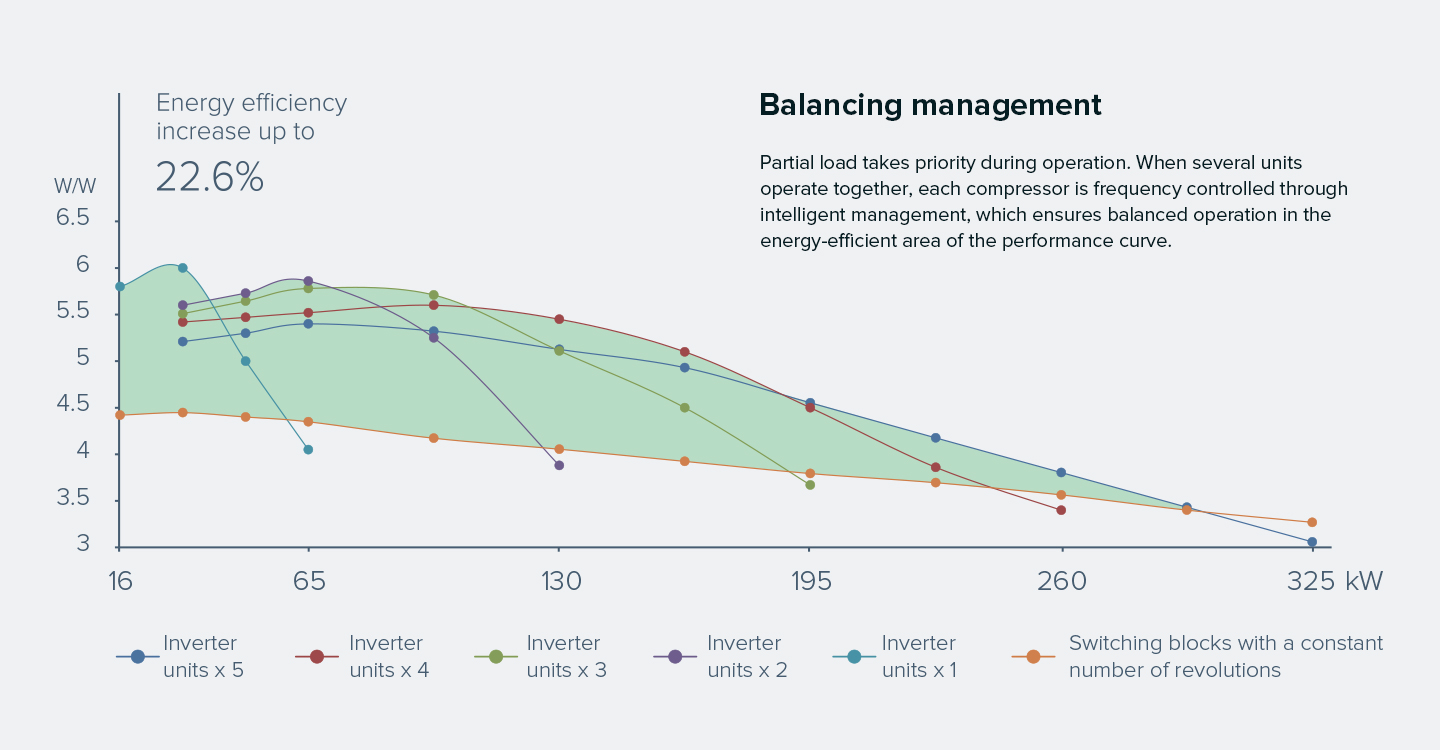

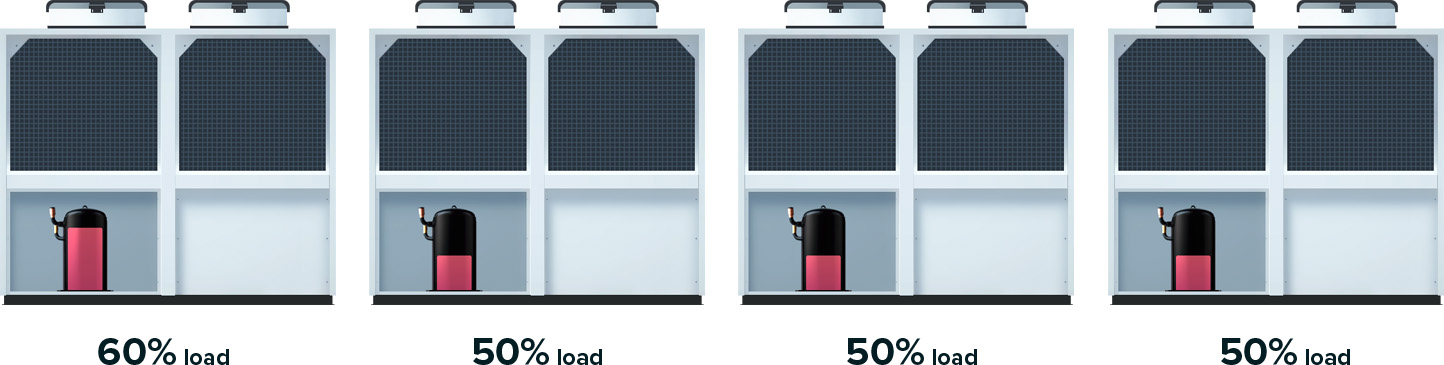

Partial load operation prioritized

When multiple modules are combined, the frequency of each compressor is intelligently controlled, with priority given to the operation in an energy-efficient partial load area. At the same time, compressor running time and load are balanced to facilitate uniform wear of each module compressor.

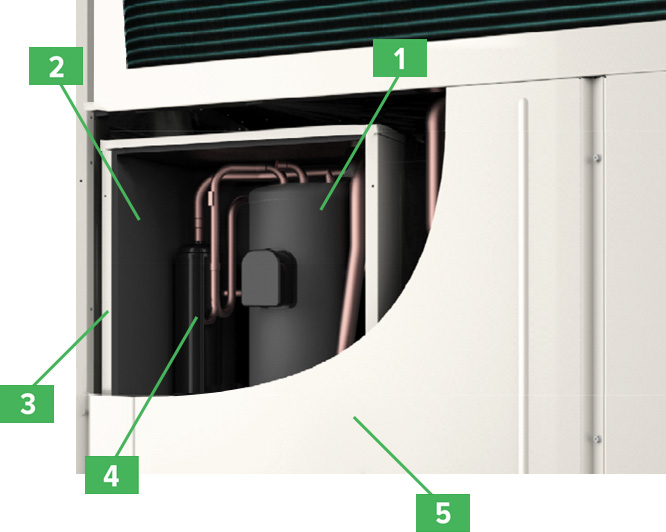

Patented 5-stage sound insulation for compressor room

  1. Acoustic block. Green felt with butyl rubber material to frequency noises
  2. Ultra-silence acoustic panel absorber. High-density foaming damping material to effectively absorb vibration and noise across frequencies
  3. Hermetic soundproof box
  4. Air suction and discharge copper pipe, oil separator, silencer, etc., placed in the compressor soundproof box
  5. Protection panel around the unit to further block noise

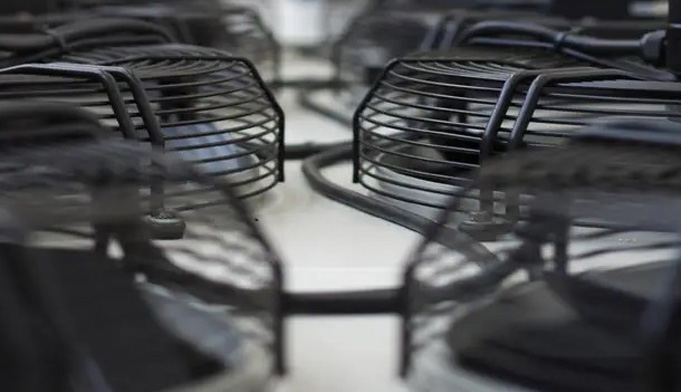

Industry's largest diameter axial fan under equal air flow

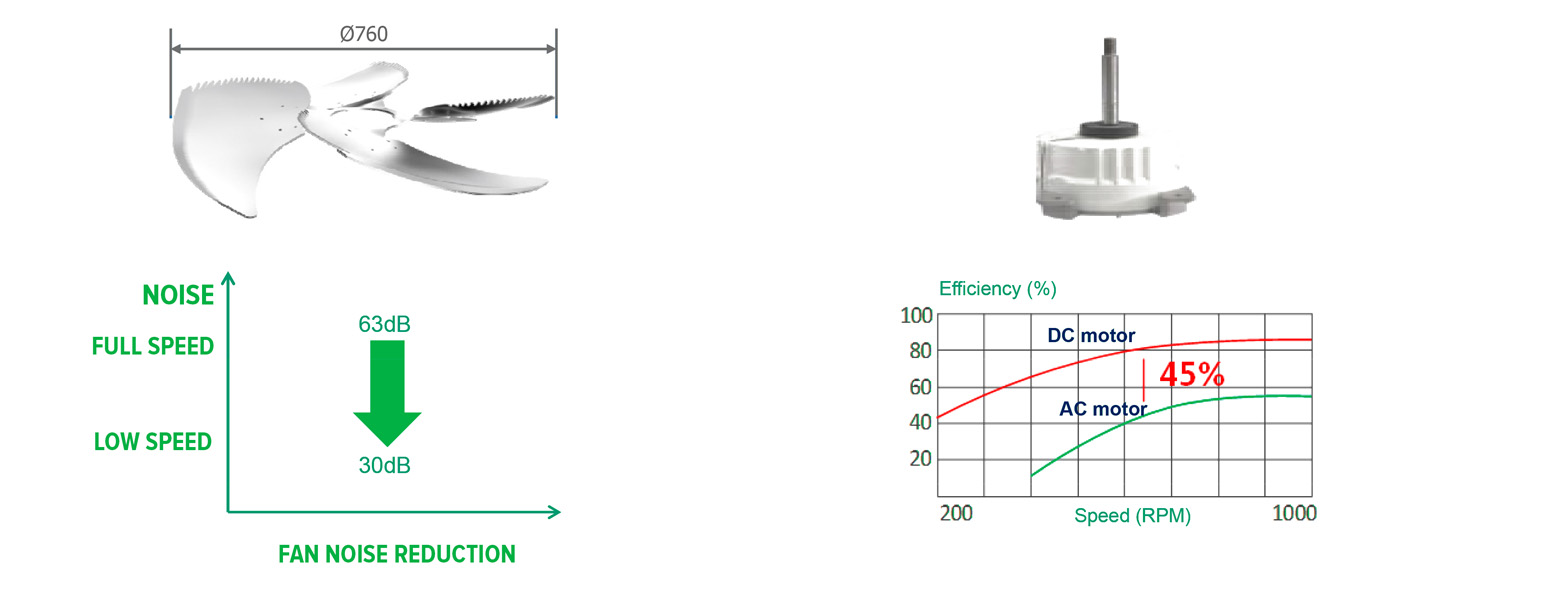

Sawtooth large impeller, low rotating speed, low fan speed, operating noise in low speed for dual blower as 30 dB.  The brushless full DC fan motor features stepless speed adjustment of 15-100% and more stable operation, achieving higher energy efficiency while reducing noises.

Frequency conversion and noise reduction

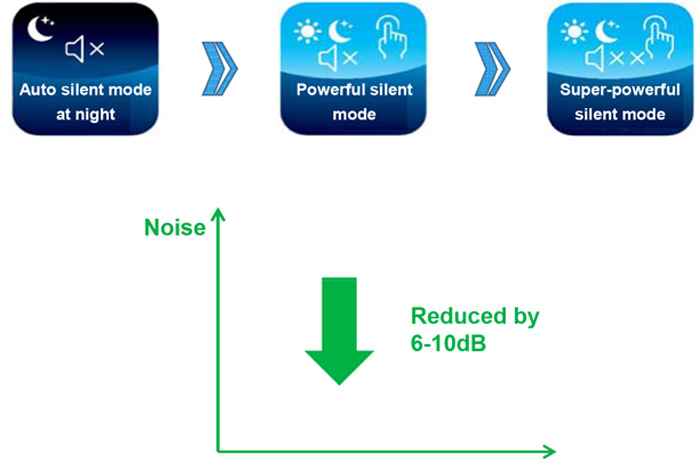

Three silent modes selectable. With wired controller settings, the unit automatically limits the operation frequency of the compressor and the fan and actively reduces noise to meet customers' higher requirements.

Specifications Units MCU035YHI MCU065YHI MCU130YHI
Rated cooling mode
Cooling capacity kW 33,5 65,0 130
Power consumption kW 12,0 21,2 41,8
EER W/W 2,79 3,06 3,11
Seasonal energy efficiency ratio (SEER) W/W 4,60 4,55 4,55
Seasonal coeficient of perfomance (SCOP) W/W 3,20 3,10 3,10
Rated heating mode
Heating capacity kW 34,0 75,0 150
Power consumption kW 10,5 23,4 45,0

COP

Seasonal coeficient of perfomance (SCOP)

W/W

W/W

3,24

3,20

3,20

3,10

3,33

3,10

Power supply   380 V, 3 phases, 50 Hz 380 V, 3 phases, 50 Hz 380 V, 3 phases, 50 Hz
Water flow rate m3/h 5,76 11,2 22,4
Water perssure drop kPa 30 45 45
Type of water inlet/outlet pipe connection   DN40 external thread DN 65 flange connection DN65 flange connection
Operation mode   Automatic microcontroller-based operation Automatic microcontroller-based operation Automatic microcontroller-based operation
Compressor type   Inverter scroll compressor with enhanced vapour injection (EVI) Inverter scroll compressor with enhanced vapour injection (EVI) Inverter scroll compressor with enhanced vapour injection (EVI)
Number of compressors pcs. 1 1 2
Fan type   Low-noise inverter axial fan Low-noise inverter axial fan Low-noise inverter axial fan
Number of fans pcs. 1 2 2
Air flow rate m3/h 13000 26000 47000
Refrigerant type   R410A R410A R410A
Dimensions, LxWxH mm 1170×846×1694 2000×950×2020 2250x1150x2260
Net weight kg 285 600 960
Operating weight kg 300 660 1060
Noise level dB(A) 50 – 61 50 – 67 50 – 67
Maximum total electric power kW 20 31,5 63
Maximum operating current A 30,5 50 100
