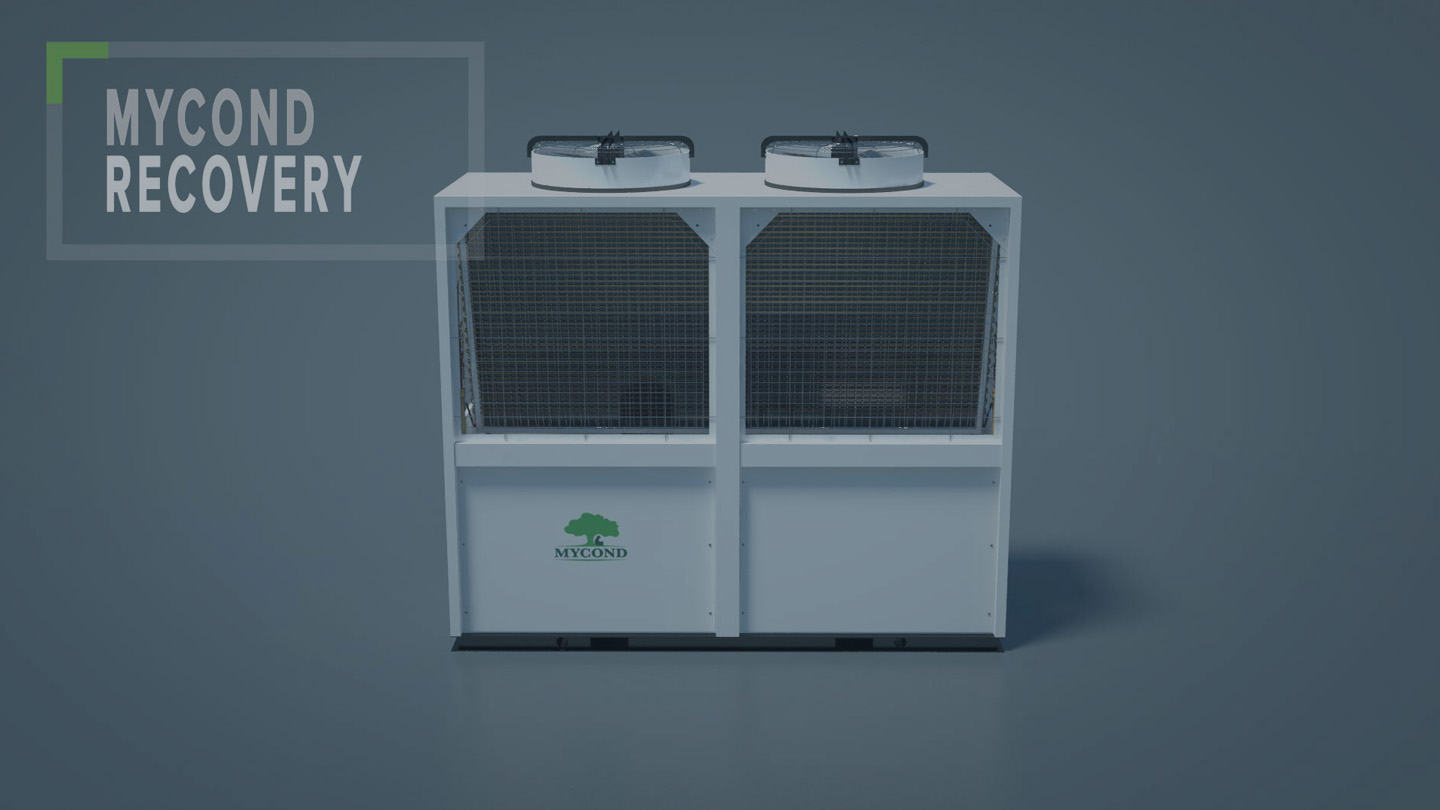

Modular heat pump,
Recovery MCU-YHR series

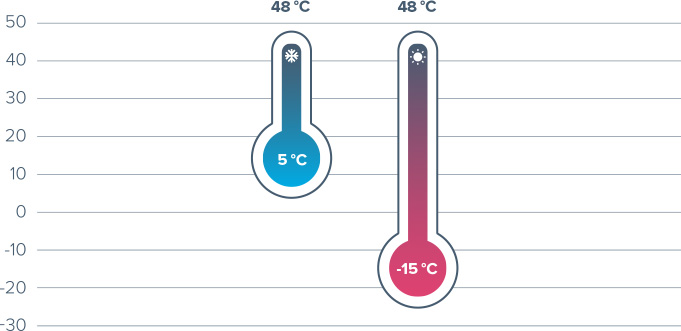

Operation limits

The heat pump operates down to -15 degrees in heat mode and up to + 48 degrees in cold mode.

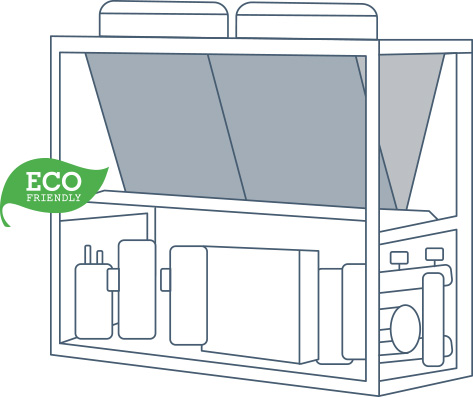

Eco-friendly refrigerant R410A

The full heat recovery heat pump of RECOVERY MCU-YHR series uses an eco-friendly refrigerant R410A. The unit supports several modes: cooling, cooling + heat recovery, heating and domestic hot water. This heat pump is especially suitable for facilities that require cooling and domestic hot water at the same time, such as hotels, schools, restaurants, hospitals, saunas and gums.

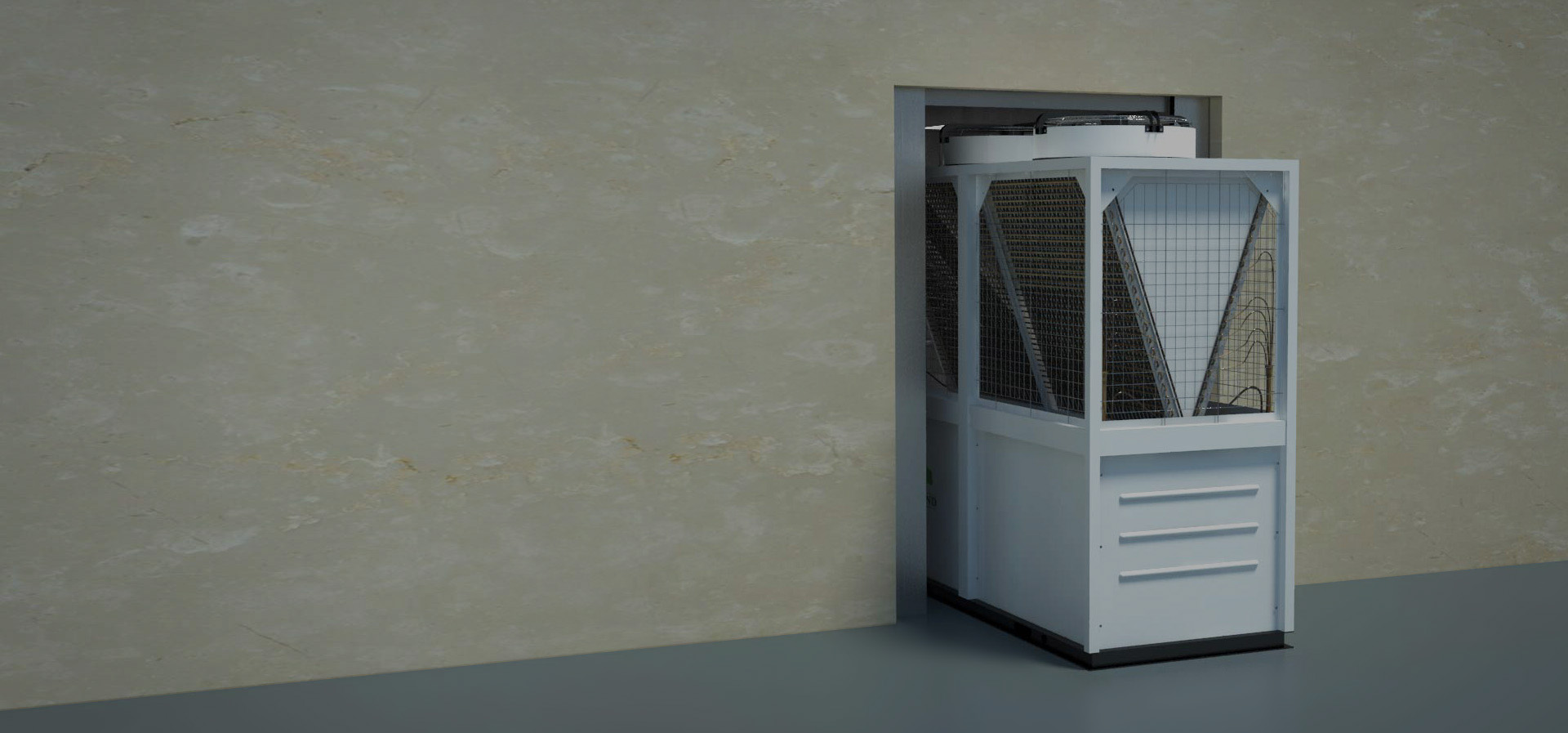

Compact design

Along with the conventional heat pump functionality, the compact design enables efficient heat recovery without the need to use much extra floor space.

Free hot water

In the cooling mode, the heat pump can utilize the waste heat from the user’s premises to produce free hot water up to 55 °C. This modular unit can meet the user’s demand for hot water instead of a boiler, while cutting down the initial investments and saving energy in an eco-friendly manner.

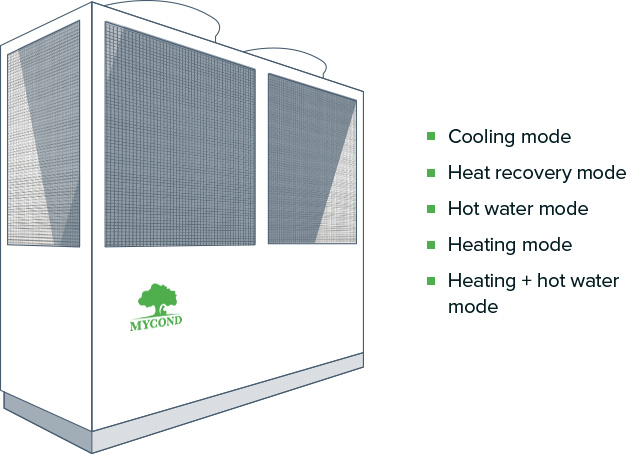

Heating mode

This mode can be used during winter and interseason, when you only need heating for operation of the heating system. The unit serves as a conventional air-to-water heat pump operating in the heating mode.

Hot water mode

This mode can be used when only hot water is needed. In this case, the heat pump only provides hot water supply, just like a conventional air-to-water heat pump.

Heating + hot water mode

This mode is useful during winter and inter-season, when both heating and hot water are needed. In this case, the default priority mode is the hot water mode; once the demand for hot water is met, the unit automatically switches to the heating mode to meet the demand for heating. You can change the priority as necessary.

Cooling mode

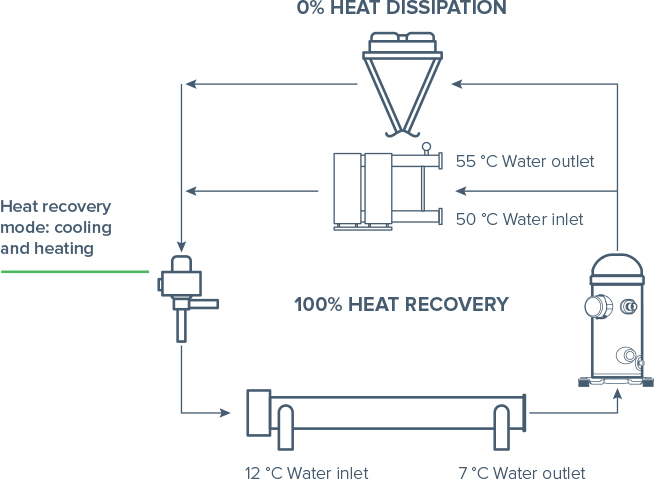

This mode can be used in summer or during inter-season, when only cooling is needed. The unit operates as a conventional air-to-water heat pump. Heat recovery mode: cooling and heating.

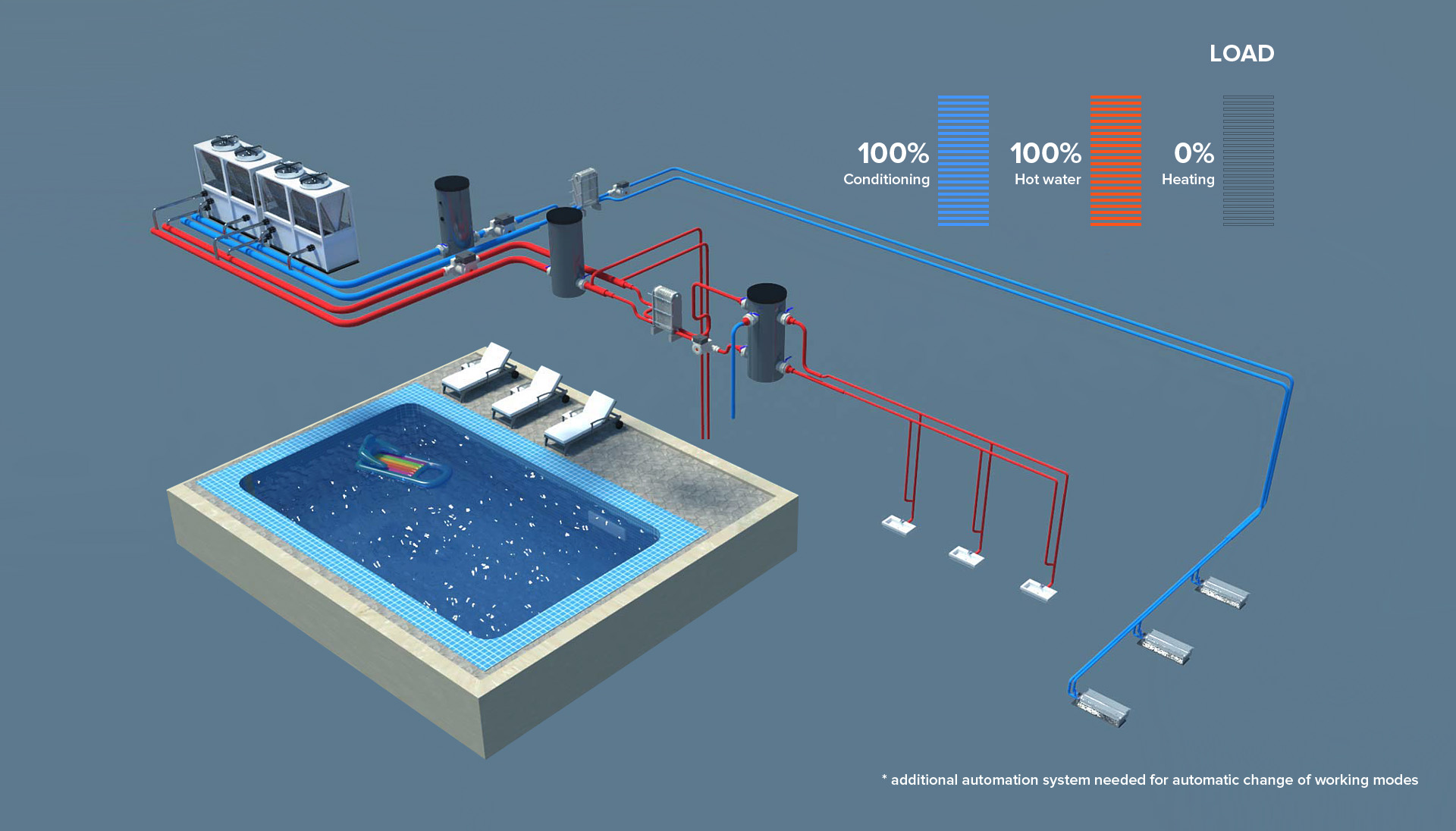

Heat recovery mode

This mode is useful when there is a demand for both cooling and domestic hot water. In this mode, the heat pump automatically selects the most suitable mode of operation based on the demand for cooling and hot water.

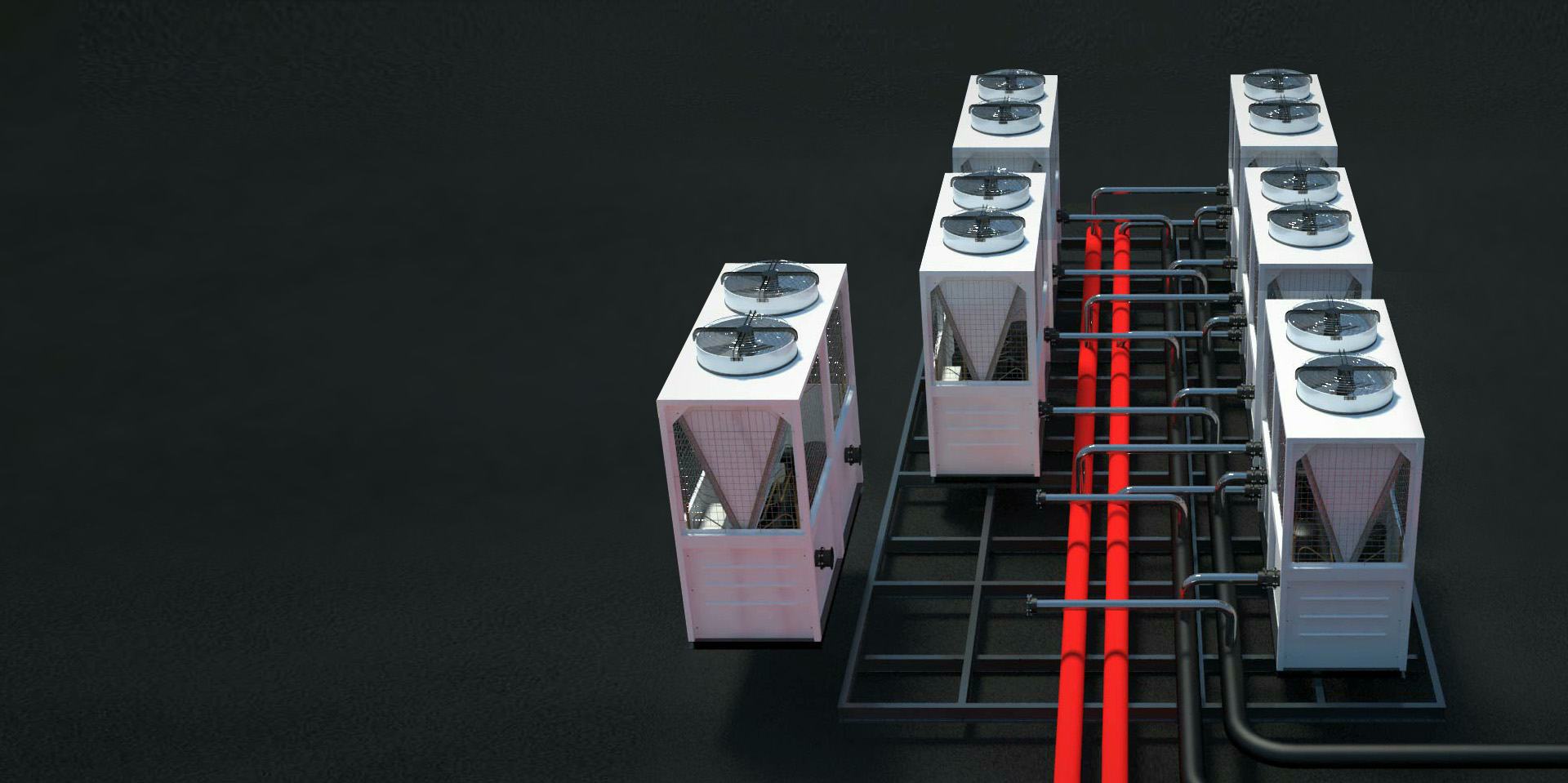

Modular Design

The unique feature of the series is its modular design with the ability to combine up to 16 modules (165YH, plus up to 8 modules) in a single system.

This feature allows extending the capacity over 1 MW with the number of capacity stages being equal to the number of compressors, so that you can have up to 32 capacity stages with 16 chiller modules (in dual-compressor models). The entire system is controlled via a single remote controler connected to the master module, while the rest are slave
modules. This results in a N-module monoblock heat pump.
