Modular heat pumps

An efficient green alternative to expensive gas solutions.

A new generation of energy-efficient equipment that uses renewable energy to provide heating, air conditioning and domestic hot water.

Watch the video

High efficiency
and energy savings

The heat pump provides significant gain in energy efficiency compared to any gas-fired or electric boiler, as it produces as much as 3-5 kW of heat out of 1 kW of electric energy.

The unit ensures maximum energy efficiency when combined with low-temperature fan coil units and underfloor heating systems.

Environment
Protection

By installing a heat pump system, you take care of the environment, as this solution is completely eco-friendly and non-polluting.

Safety

The modular heat pump is perfectly safe to operate without any high voltages, gas emissions or harmful components

Сompact equipment for cost-effective climate control

The modular design allows using compact and lightweight heat pumps in both new buildings and renovation projects

Cost-effective climate
control for

Hotel
Complexes

Office
Buildings

Sports
Facilities

Entertainment
Centers

Swimming
Pools

Commercial
Facilities

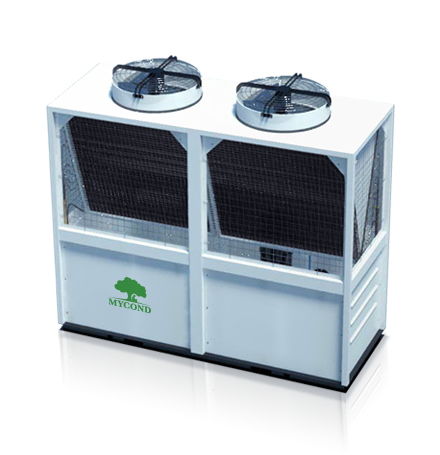

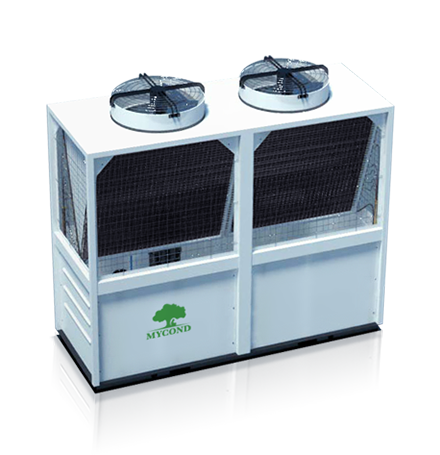

Mycond MCU-YH is a series of modular heat pumps that includes seven models with cooling capacity ranging from 66 to 440 kW and heating capacity ranging from 70 to 475 kW

Modular Design

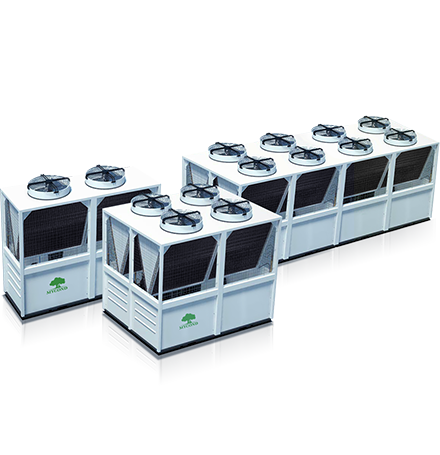

The unique feature of the series is its modular design with the ability to combine up to 16 modules (165YH, plus up to 8 modules) in a single system.

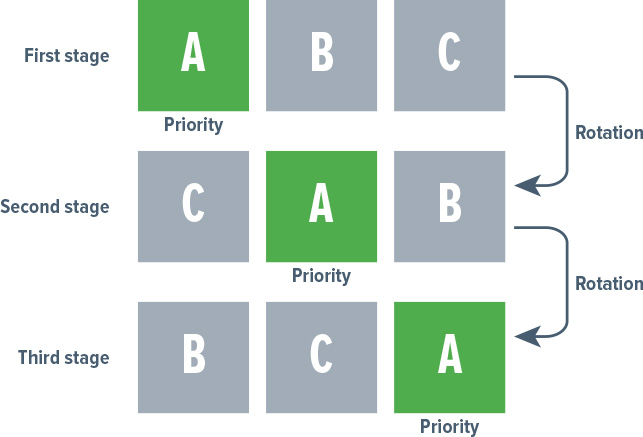

This feature allows extending the capacity over 1 MW with the number of capacity stages being equal to the number of compressors, so that you can have up to 32 capacity stages with 16 chiller modules (in dual-compressor models)

Powerful Protection

The heat pump is equipped with powerful protection, including a self-diagnostic feature that ensures long-lived, steady and reliable operation. The heat pump can be set to quickly resume the current operation after power recovery.

Compressor overload protection
High / low voltage protection
Water shortage protection
Compressor short-cycling protection
Fan motor overheat protection
Power supply protection
Exhaust temperature protection
Outlet water temperature protection

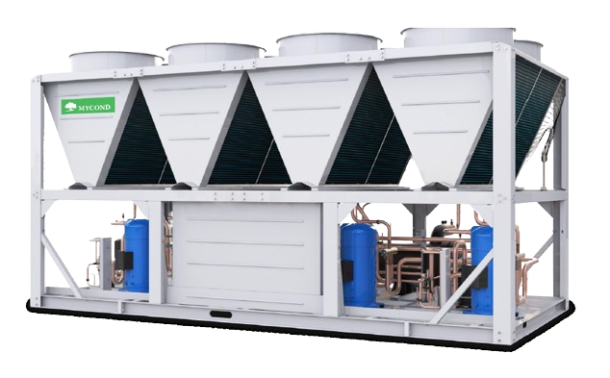

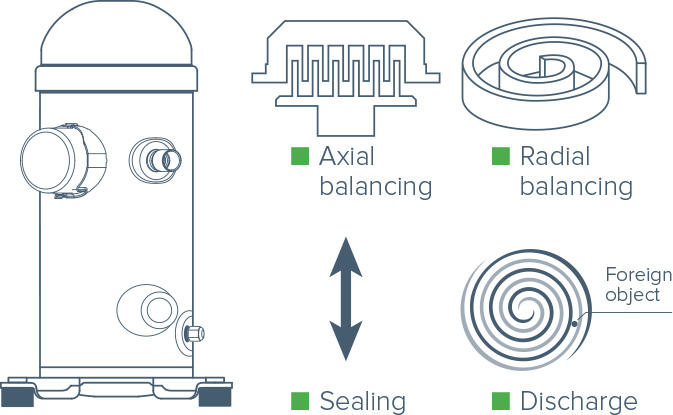

Efficient Scroll
Compressor

The heat pump is equipped with efficient hermetically sealed scroll compressors from world-renowned brands. Axial balancing and non-contact sealing of the spirals ensure frictionless operation and minimize the leakages. Radial balancing of the spirals allows foreign objects to pass freely through the compressor and protects the unit against both contamination and liquid ingress. This ensures higher compressor efficiency and reliable operation, as well as low vibration and noise levels

Floating Master
Heat Pump

Any individual heat pump can operate as a master pump: you just need to connect it once to the wired controller. This eliminates the problem of the entire system going out of service, when the master heat pump fails

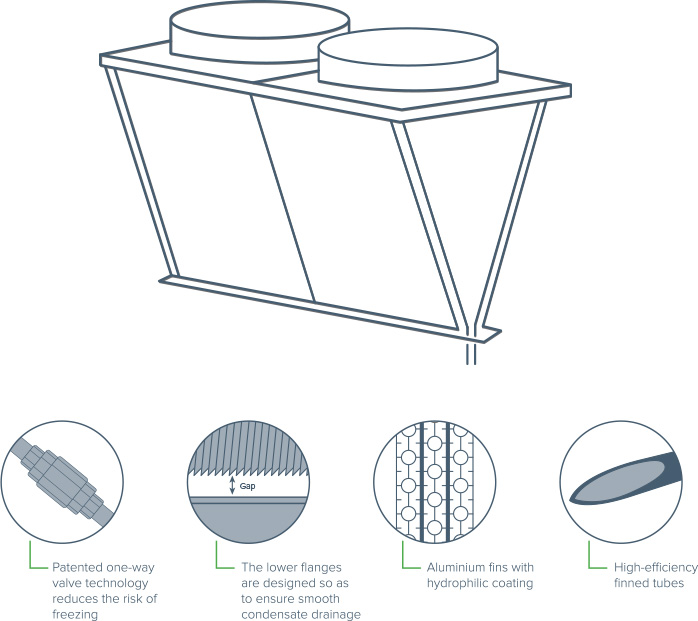

V-Shaped Condenser

The special V-shaped design of the air heat exchanger provides increased air flow, while hydrophilic aluminum fins and corrugated inner tubes improve the efficiency of heat transfer. Metal fan blades and mesh grilles provide greater reliability and protection against external impacts.

A check valve installed in the refrigerant circuit at the bottom of the heat exchanger prevents circulation of low-temperature refrigerant in the heating mode, while enabling circulation of high-temperature refrigerant in the defrosting mode. This prevents formation of ice, protecting the heat exchanger from freezing
