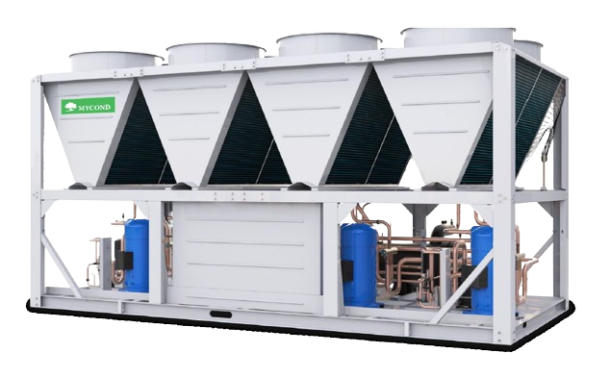

Air-Cooled Scroll Chiller YHE Series MCU-500YHE

The 500 kW Mycond high-temperature heat pump,
equipped with Danfoss compressors with EVI technology
and 3rd generation control system, maintains high
temperatures as low as -32°C. Efficiently produces
hot water up to +60°C, ideal for large facilities,
provides reliable heating all year round

MORE DETAIL
Heating capacity
up to 540 kW
Cooling capacity
up to 500 kW

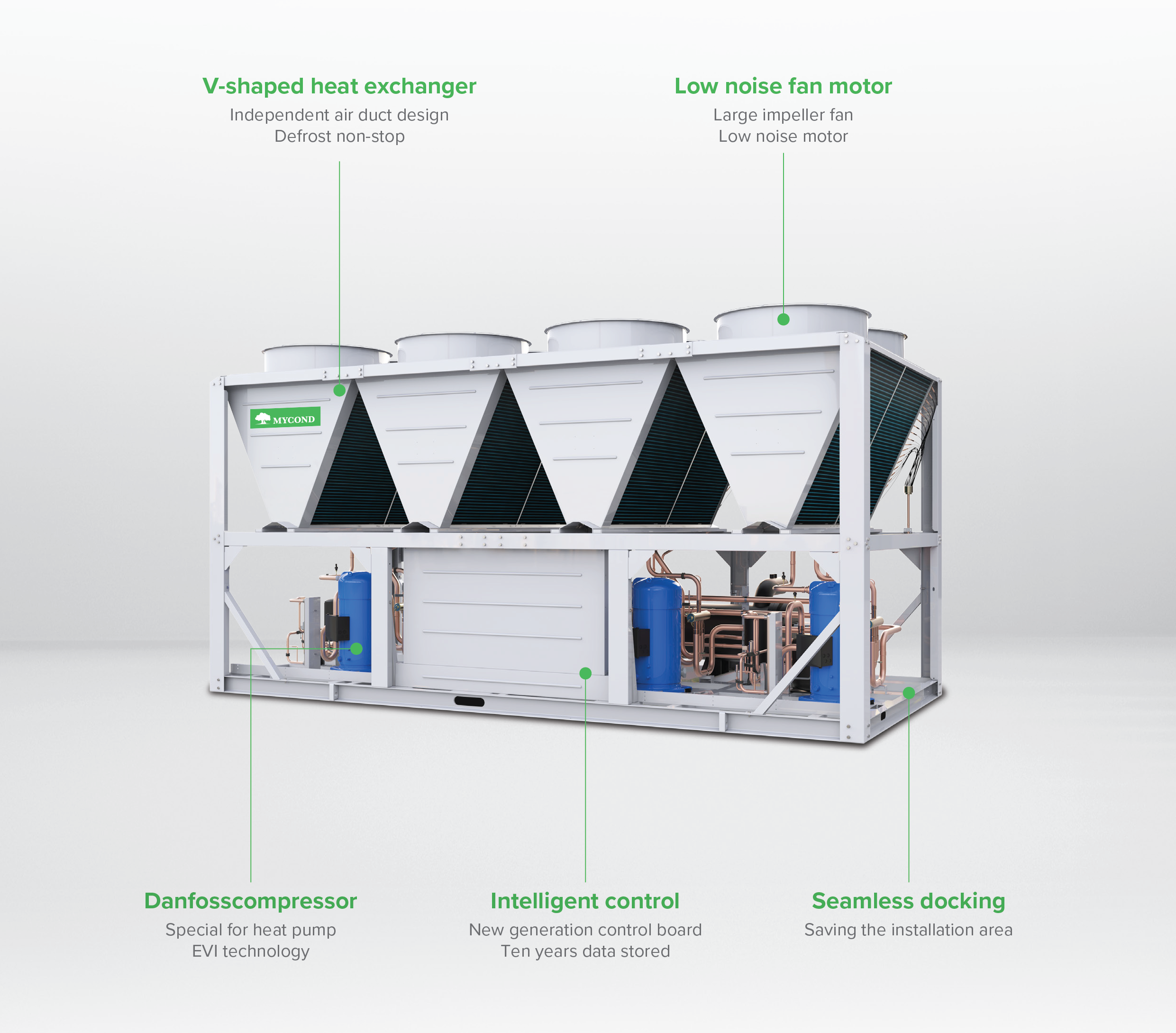

Key advantages:

Danfoss compressor

  • Special for heat pumps
  • EVI technology (used for cooling and heating)

Quiet fan motor

  • Large impeller fan



Intelligent control

  • New generation control board 3.0
  • Ten years of data storage



Up to 8 units can be combined with 1 controller.

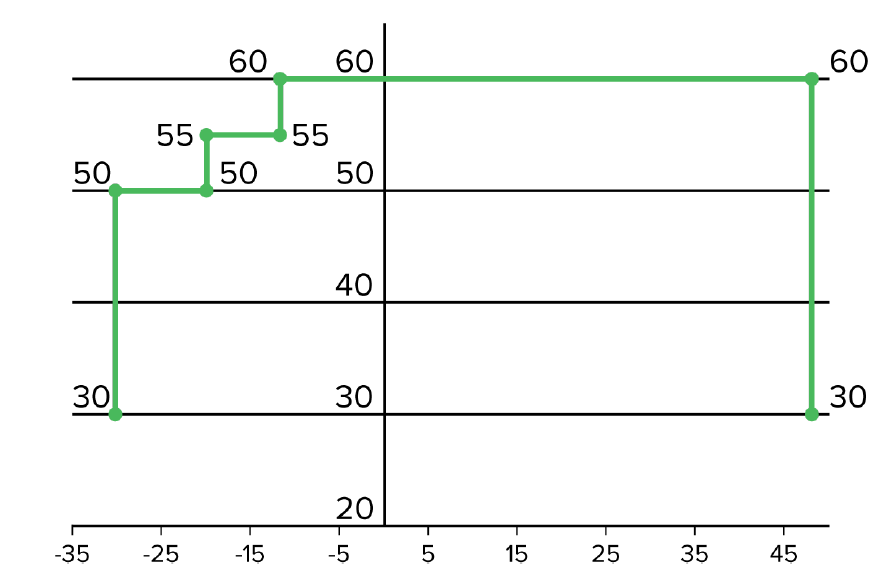

Range of operation:


Due to the advanced vapor injection, the compressor is able to operate at higher high pressure levels. The outlet water temperature increases by 5-10°C when heating at low temperatures: this makes it possible to meet the needs of underfloor heating systems, fan coil units and the latest radiators.



Cooling:

  • Water outlet temp. 5~20 °C
  • Ambient temp. 5~48 °C

Heating:

  • Hot water outlet temp. 30~60 °C
  • Ambient temperature -32~48 °C

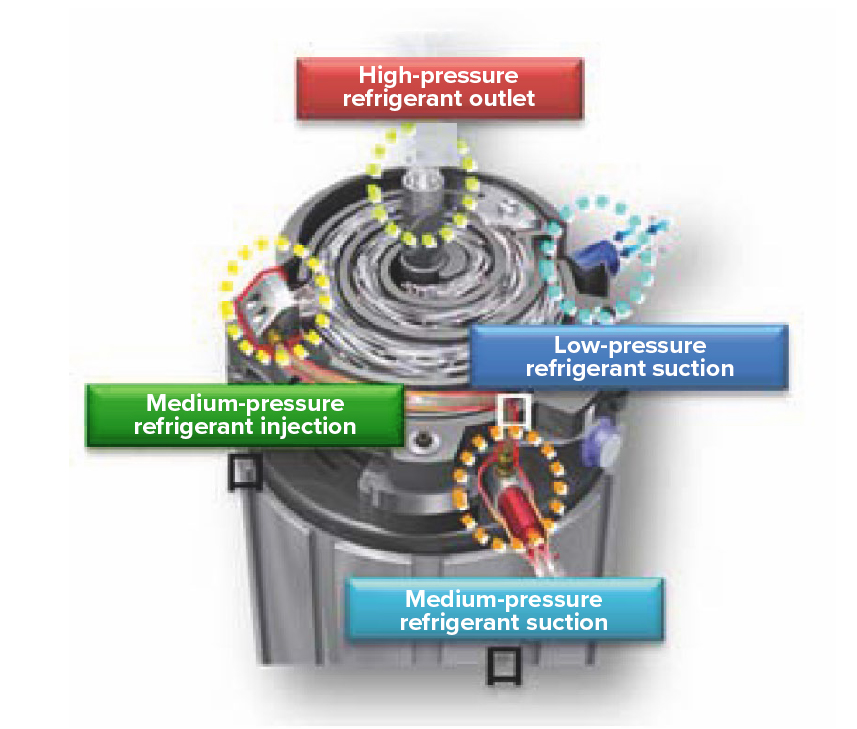

Advanced vapor injection (EVI)


Optimization:



  • Optimum performance is achieved.
  • The degree of super cooling is increasing.
  • High pressure operation is improved.
  • The mass flow rate of the refrigerant through the condenser increases.
  • The temperature at the compressor outlet decreases.
  • The suction volume of gaseous refrigerant increases.

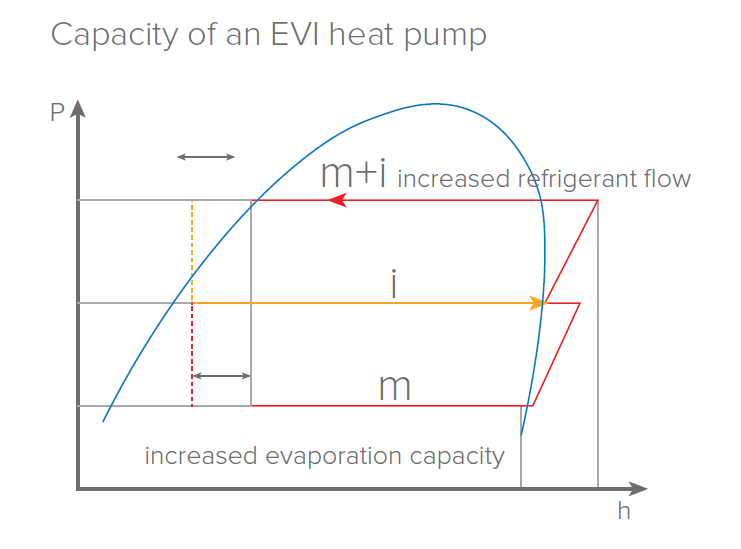

A pressure-enthalpy diagram describing the advanced steam injection process. Equipped with a compressor with advanced vapor injection (EVI), it provides effective heating at extremely low outdoor air temperatures. This technology also significantly improves the performance of the heat pump, as the pump produces more heat while consuming less power.

Cooling innovations

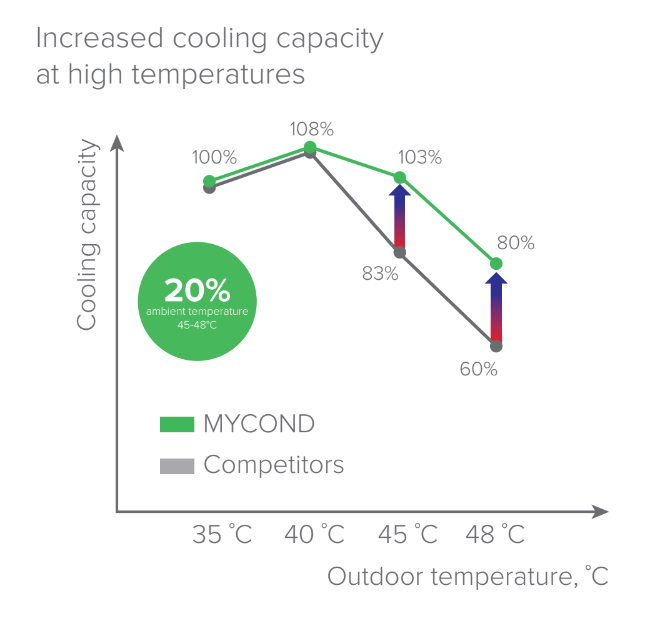

During cooling operation at an ambient temperature of 45...55°C, cold refrigerant in the vapor state is injected into the compressor, thereby reducing the discharge temperature and facilitating the compressor's working conditions. With  EVI technology the main liquid refrigerant flow in  the economizer circuit is additionally subcooled, which increases the cooling efficiency of the entire chiller up to 20%.

Optimized heating

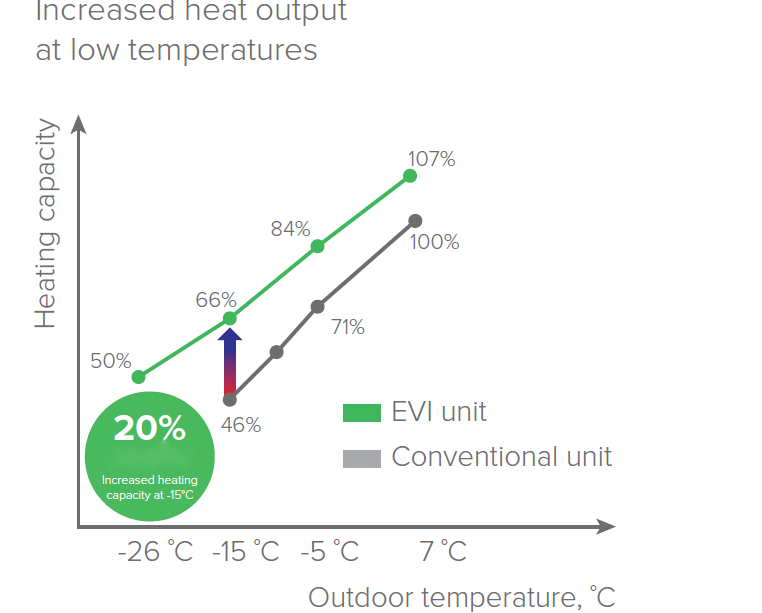

Enhanced vapour injection (EVI) increases the refrigerant flow rate and pressure, which means higher heat output and water temperature on the user’s side. At the same time, the increased refrigerant circulation rate results in 20% higher heat output at low temperatures. Heating operation is possible at ambient temperatures down to -26 °C.

Specifications Units MCU-500YHE
Cooling capacity (A35/W7) kW 500
Electrical power in cooling mode kW 147,06
EER   3,4
SEER    3,8
Heating
Rated heat output (A7/W45) kW     540
Electrical power in heating mode kW 147,1
COP   3,67
SCOP   3,36
Maximal operating current А 400
Power supply   380V, 3 fazy 50Hz
Water flow rate m3/h 86
Water pressure drop kPa 56
Connection pipe dimension   DN125 Victaulic connection
Compressor
Compressor type   Hermetic scroll compressor (Danfoss)
Number of compressors   4
Fan
Type of fan   Axial
Number of fans   8
Air flow rate m3/h 164000
Refrigerant charge kg R410A/24,5*4

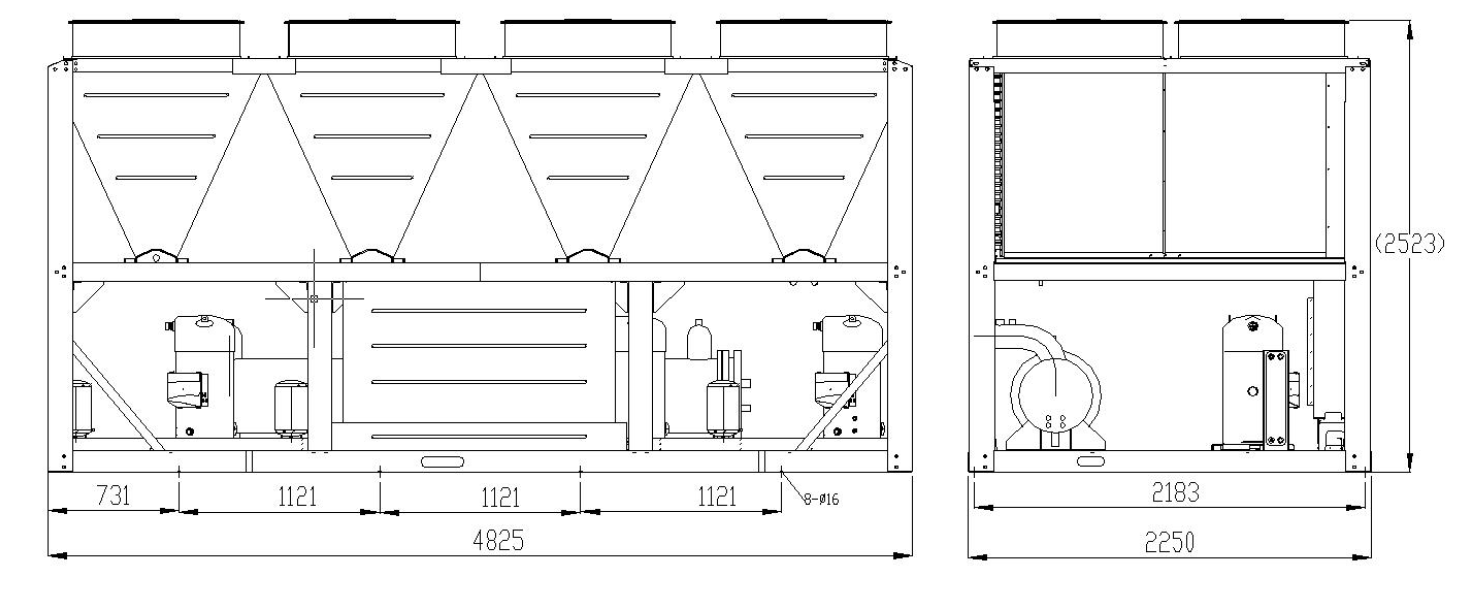

Dimensions mm 4825×2250×2530
Net weight kg 3900
Operating weight kg 4200
