Mycond Inverter Pro MCU-065YHDD

The Mycond Inverter Pro series of heat pumps, with an innovative inverter compressor, offers high efficiency and reliability, even at different outdoor temperatures. The unit features smaller dimensions, making installation easier and reducing the space required. It provides stable water production at +55 degrees and operates efficiently all year round

MORE DETAIL
Heating capacity
up to 65 kW
Cooling capacity
up to 60 kW

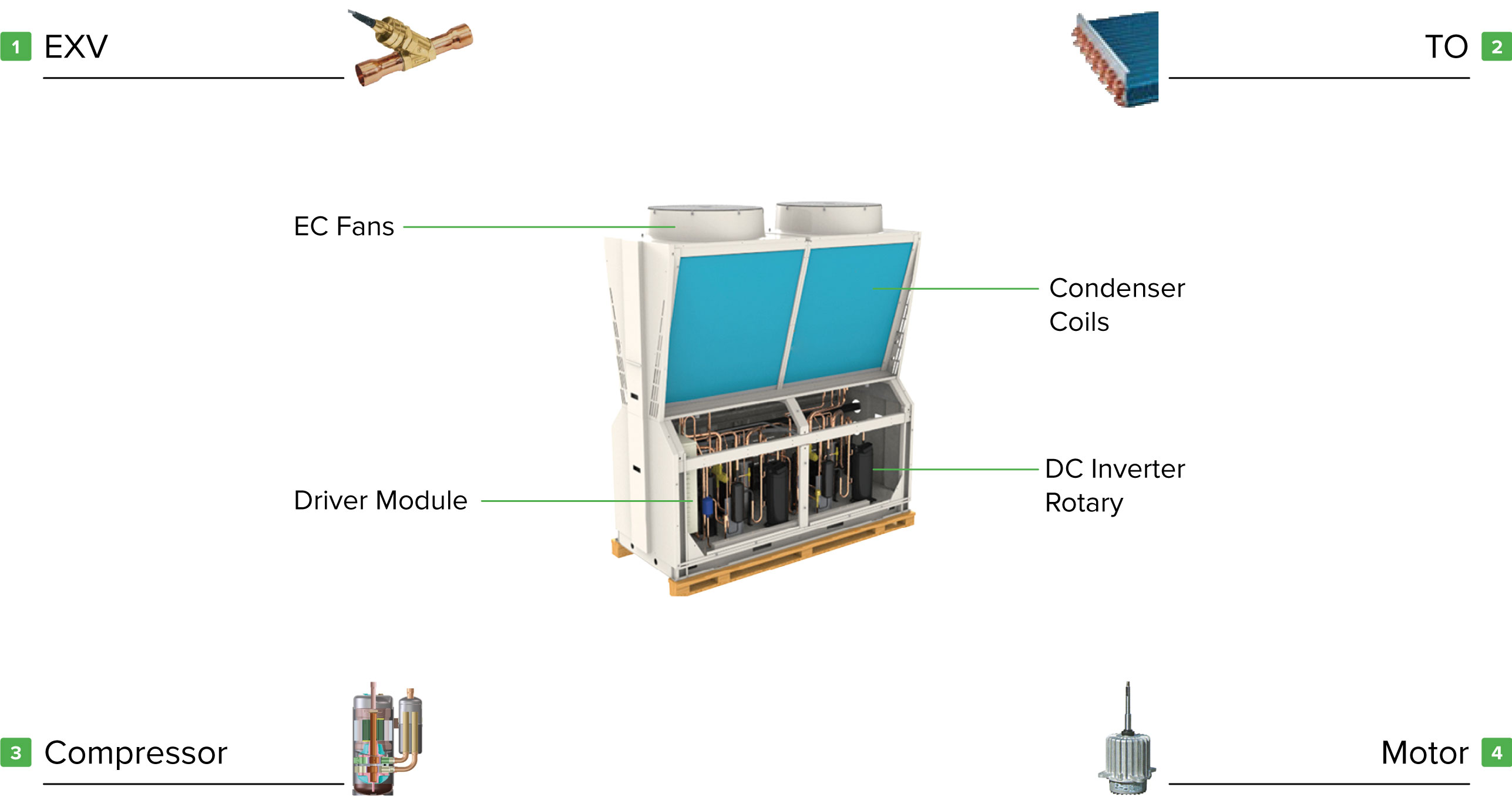

High Efficiency

  • The unit adopts full DC inverter rotary compressor, driven by high-efficiency permanent magnet DC motor to improve the energy efficiency greatly. The high-efficiency oil supply and oil separation parts ensure the low friction, low noise, stable and reliable operation of the compressor.
  • Low sound power level EC fans, together with high efficiency DC inverter motor, greatly reducing the power consumption. Special 0-91Hz stepless variable frequency speed regulation ensures the stable and reliable operation of the unit.

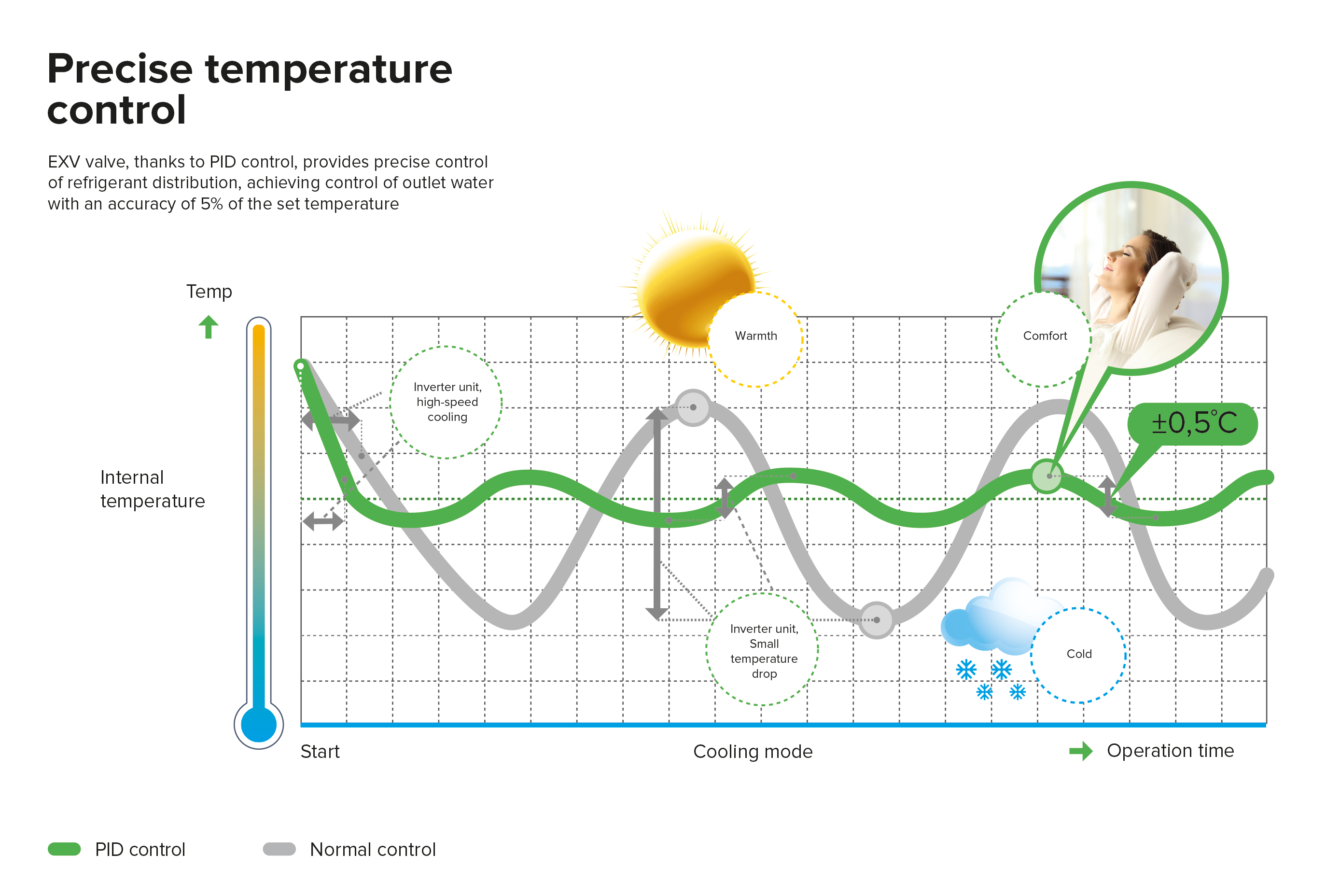

  • EXV will control the liquid refrigerant spraying into the evaporator precisely.
  • ‘V’ shape condenser, enlarging the heat exchanging area by 5%.

Easy Installation

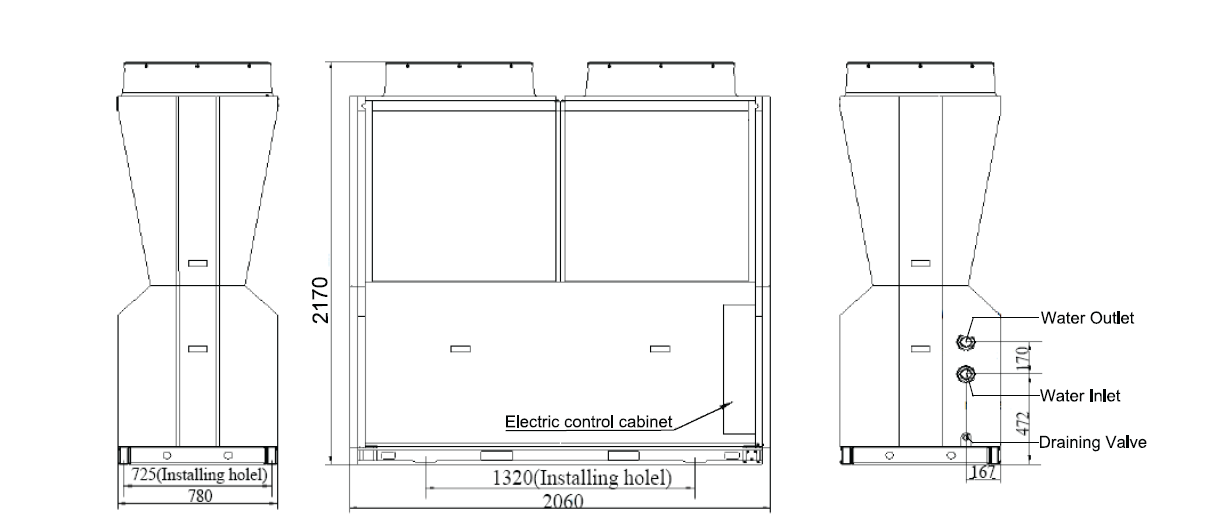

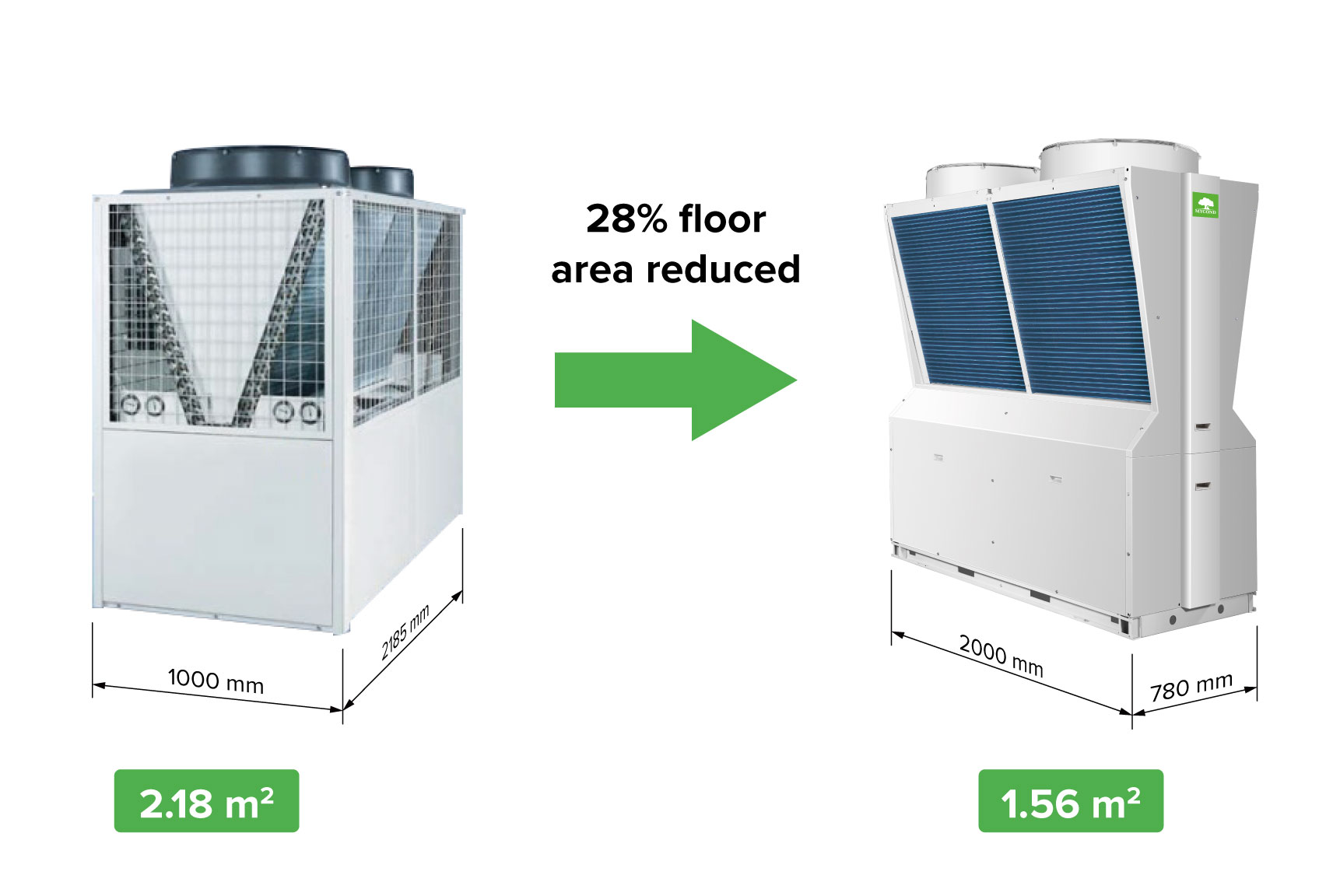

Compact design, small footprint Y' shape design, small floor area, only 1.56m2, 28% footprint can be reduced.

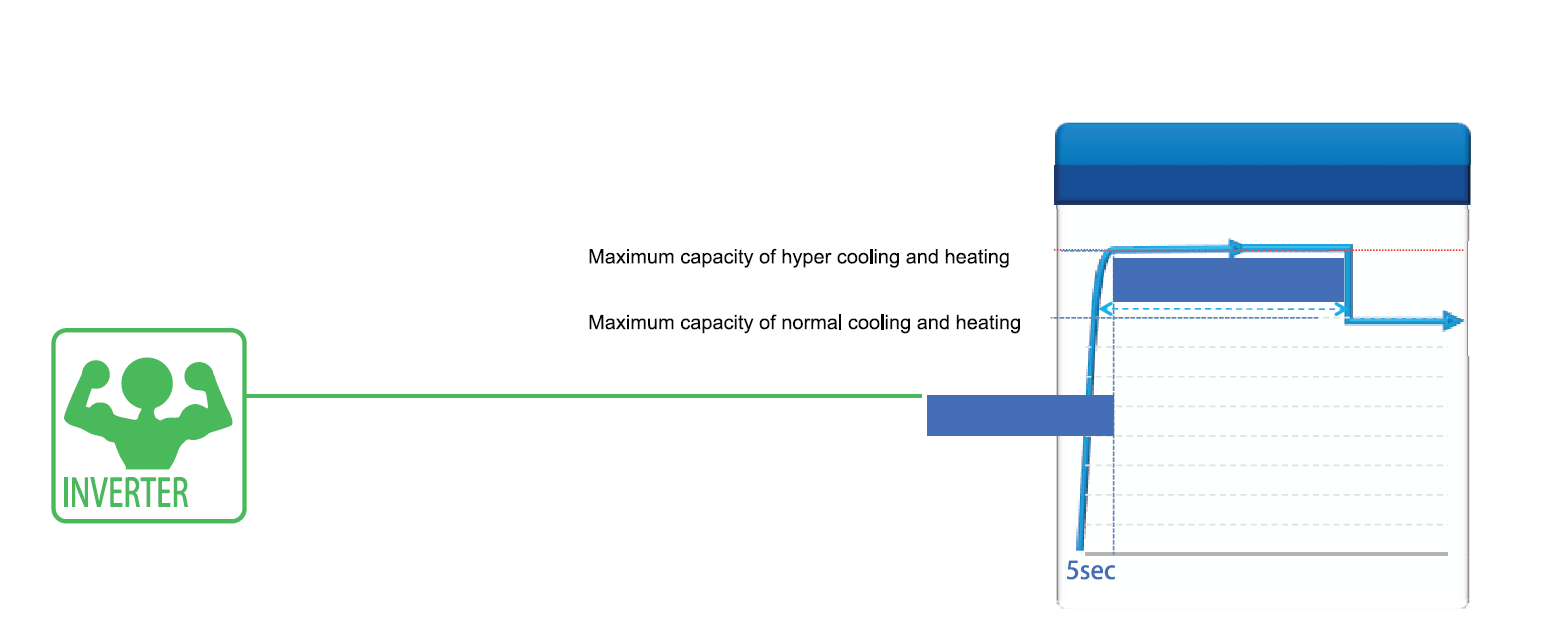

Quick start

With new inverter technology, quick start within 5s, maintain ultra high frequency operation within 1 hour to ensure the room temperature can reach the set temperature as soon as possible.

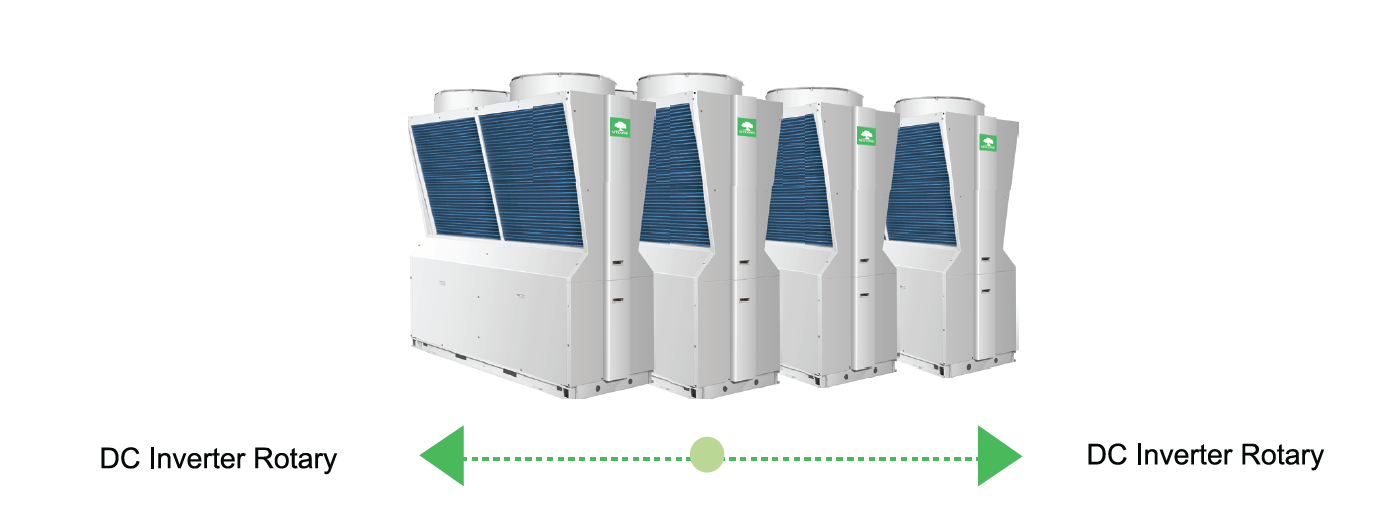

Modular design, flexible combination

The unit adopts modular design, and max. 16 modules can be combined in each group, which can meet the load demand of different buildings. The combination can be "full inverter units solution" or "inverter units and fixed speed units solution".


Full inverter units solution
( Inverter unit(main module)+N×inverter units(auxiliary modules) )
Inverter units and fixed speed units solution
( Inverter unit(main module)+N×fixed speed units(auxiliary modules) )

Specifications Units MCU-065YHDD
  Cooling capacity kW 60
Cooling (A35/W7) Power consumption kW 20
  Operating current A 38
  Heating capacity kW 65
Heating (A7/W45) Power consumption kW 19,4
  Operating current A 36.8
EER   3,00
COP   3,35
Maximum power consumption kW 31,6
Maximum operating current A 60
Power supply   3N-/380V/50Hz/60Hz
Refrigerant type   Electronic Expansion Valve
Capacity control   Stepless
  Type   Rotary
Compressor Quantity   2

 		 Power consumption kW 9,5×2
Refrigerant Type   R410a
  Loading kg 6×2
  Type   Internally grooved copper tube with hydrophilized aluminum fins
Air heat exchanger Fan power kW 0,8×2
  Ventilator type   Axial fan
  Number of fans   2
  Type   Shell and tube heat exchanger
Water heat exchanger Rated water flow m3/h 10,32
  Inlet/outlet pipe   R2 ,,
  Water contamination ratio m2.°C/kW 0,018
  Standard pressure Mpa 1,0
  Water resistance kPa 45
Sound power level dB(A) 65
  Unit weight kg 700
Weight Gross weight kg 715
