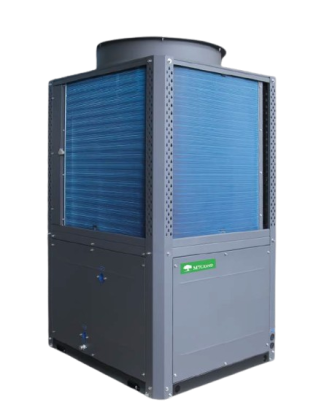

Modular heat pump, Propane MCU-YHP

The new Mycond heat pump model offers high technical
performance and efficiency, running on environmentally
friendly R290 Freon. It provides efficient heating even at
-25 degrees, reaching temperatures of up to +75 degrees

MORE DETAIL
Heating capacity
up to 50 kW
Cooling capacity
up to 32 kW

Expansion to 16 modules allows flexibility and energy optimization, and the compact housing guarantees quality and reliability.

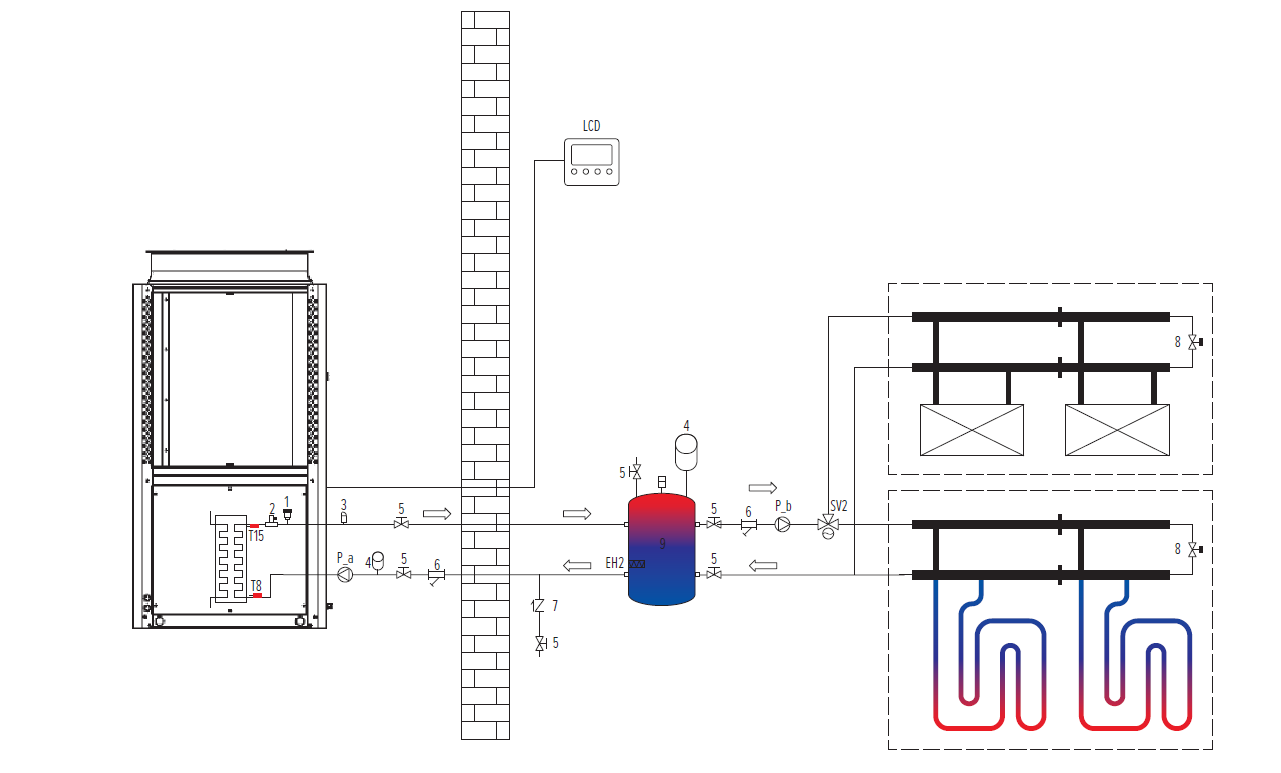

1. The selection of pipes of the appropriate diameter and installation of balancing valves contributes to the uniform distribution of the water flow; 2. The system must be equipped with an automatic water replenishment system, and an automatic discharge valve must be installed at the highest point of the water supply system. 3. The drain valve is installed in the lower part of the pipeline to facilitate draining; 4. The automatic discharge valve is installed at the highest point of the system pipeline, and the water pipe at the installation point must be expanded; 5. The normal working volume of water should ensure normal defrosting in winter (make sure that the water volume exceeds 10 L/kW); 6. There is a water flow switch inside the device, no need to install additional equipment; 7. To facilitate maintenance of the unit, a pressure gauge must be installed on the outlet/inlet pipe of the unit; 8. If the heat closer provides room temperature control, install the differential pressure bypass valve according to the diagram; 9. If the device does not work in winter, the water in the system must be drained to prevent freezing of the pipes and components of the heat pump.

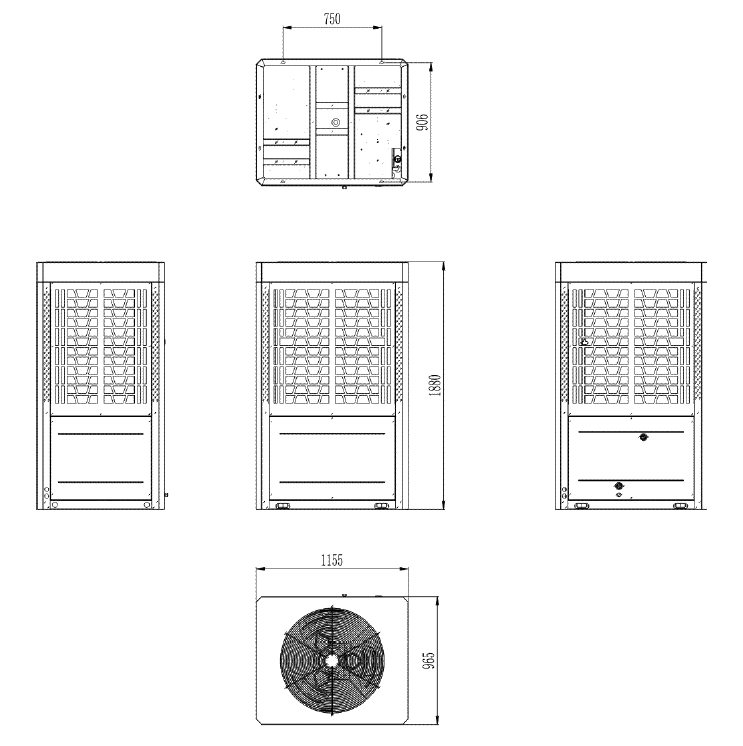

Dimensions


MCU050YHT

Specifications Units MCU-YHP
Heating capacity range   kW (17,56-55,30)
  Heating capacity kW 50,00
Heating (A7/W35) Capacity kW 12,35
  COP W/W 4,05
  Heating capacity kW 50,00
Heating (A7/W55) Capacity. kW 17,50
  COP W/W 2,86
  Cooling capacity kW 40,00
Cooling (A35/W18) Capacity. kW 11,05
  EER W/W 3,62
  Cooling capacity kW 32,00
Cooling (A35/W7) Capacity. kW 13,30
  EER W/W 2,41
Low-temperature mode (W35)   A++
Medium-temperature mode (W55)   A++
SCOP (35°C)   3,92
SCOP (55°C)   3,25
Rated water flow m3/h 8,60
Rated voltage /Frequency V/Hz 400 В / 3N~ 50 Hz
Maximum input power kW 19,84
Maximum input current

А 30,30
  Rated current А 32
Fuse selection Rated current А 48



Notes:

1. Cooling capacity and electrical power consumption in cooling mode refer to rated water flow rate, outlet water temperature of 7 °C and ambient temperature of 35 °C.

2. Heating capacity and electrical power consumption in heating mode refer to rated water flow rate, water outlet temperature of 45 °C and ambient temperature of 7 °CDB.
